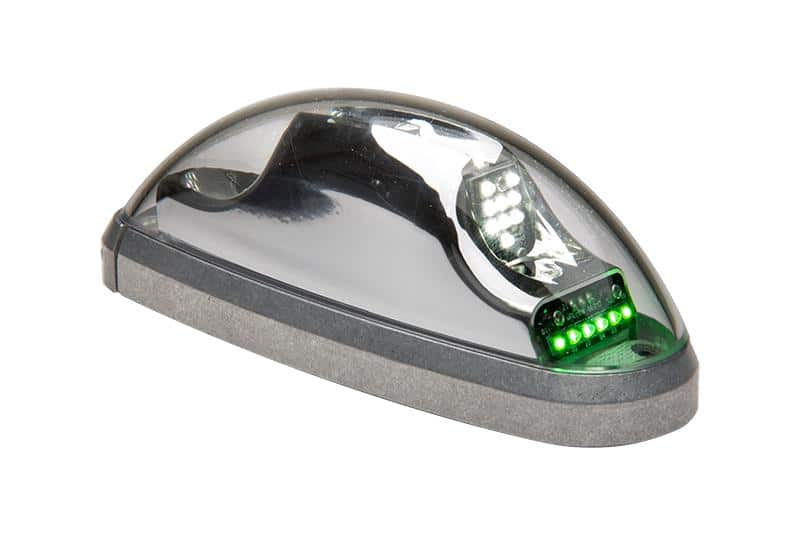

The Orion 600 series products incorporate a RED or GREEN Forward Position Light, the WHITE flashing Anti-Collision light, and the Tail Position Light functions. The built-in tail position light meets all FAA requirements so a tail mounted position light is not needed. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO approved.
- Drawing # 71733
- Weight 0.5 lbs.
- Dimensions H x W x L 2.04 (52mm) x 1.78 (45mm) x 5.65 (144mm)
- Current Draw 12V / 28V 0.48 / 0.17 Amps Position 1.0 / 0.5 Amps Avg. ACL
- Position Led Colors Aviation Red, Aviation Green, Aviation White
- Anti-Collision LED color Aviation White
- Lenses Clear Polycarbonate Hard-coated, Field Replaceable
